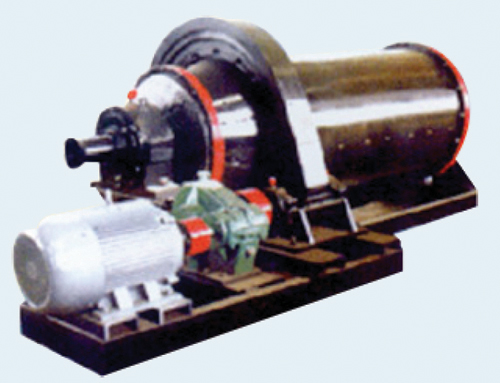

●傳動采用大型雙列調心滾子軸承代替滑動軸承，康擦力大大降低，啟動容易、節能顯著
●出料端采取錐型設計，既增加容積，又迫使錐體端的物科和鋼球分級，愈接近出科口、鋼球直徑愈小，增加反廈研磨作用
●采用整機機架，便于土建施工和設備安裝
使用范圍/Scope of using
球磨機是原材料粉碎作業的重要設備也是應用最廣的設備，常用于細磨作業。
技術參數/Parameter
型號
Model |
簡體直徑
Diameter
of cylinder
(mm) |
簡體長度
Length
of cylinder
(mm) |
簡體轉速
Rotating
speed of
cylinder
(r.p.m) |
電動機
Motor |
有效容積
Effective
volume
m3 |
最大裝球量
Max load
of
ball
(t) |
外形尺寸
Extemal dimensions |
重量
Weight
(kg) |
型號
Model |
功率
power
(kw) |
轉速
Rotating
speed
(r/min) |
L
(mm) |
W
(mm) |
H
(mm) |
|
GZM0912 |
Φ900/Φ675 |
900/300 |
41.57 |
Y160L-6 |
11 |
970 |
0.59 |
1 |
3271 |
1815 |
1400 |
4263 |
|
GZM0916 |
Φ900/Φ675 |
1350/300 |
41.57 |
Y180L-6 |
15 |
970 |
0.83 |
1.42 |
3786 |
1815 |
1400 |
4844 |
|
GZM0918 |
Φ900/Φ675 |
1500/300 |
41.57 |
Y180L-6 |
15 |
970 |
0.91 |
1.56 |
3936 |
1815 |
1400 |
5100 |
|
GZM0921 |
Φ900/Φ675 |
1800/300 |
41.57 |
Y200L1-6 |
18.5 |
970 |
1.07 |
1.84 |
4301 |
1815 |
1400 |
5420 |
|
GZM1216 |
Φ1200/Φ900 |
1200/400 |
36.4 |
Y200L2-6 |
22 |
970 |
1.67 |
2.87 |
3912 |
2076 |
1620 |
6500 |
|
GZM1220 |
Φ1200/Φ900 |
1600/400 |
37.38 |
Y225M-6 |
30 |
980 |
2.14 |
3.68 |
4443 |
2076 |
1620 |
7300 |
|
GZM1224 |
Φ1200/Φ900 |
2000/400 |
37.38 |
Y250M-6 |
37 |
980 |
2.61 |
4.49 |
5088 |
2138 |
1670 |
9300 |
|
GZM1226 |
Φ1200/Φ900 |
2200/400 |
37.38 |
Y250M-6 |
37 |
980 |
2.84 |
4.88 |
5288 |
2138 |
1670 |
9647 |
|
GZM1228 |
Φ1200/Φ900 |
2400/400 |
37.38 |
Y280S-6 |
45 |
980 |
3.07 |
5.28 |
5558 |
2168 |
1670 |
10160 |
|
GZM1520 |
Φ1500/Φ1200 |
1500/500 |
32.1 |
Y280M-6 |
45 |
740 |
2.84 |
4.88 |
4825 |
2740 |
2110 |
12891 |
|
GZM1523 |
Φ1500/Φ1200 |
1800/500 |
31.37 |
YR280S-8 |
55 |
723 |
3.29 |
5.66 |
5335 |
2740 |
2110 |
13913 |
|
GZM1526 |
Φ1500/Φ1200 |
2100/500 |
31.37 |
YR280S-8 |
55 |
723 |
3.74 |
6.43 |
5635 |
2740 |
2110 |
14664 |
|
GZM1529 |
Φ1500/Φ1200 |
2400/500 |
30.46 |
YR280M-8 |
75 |
725 |
4.19 |
7.2 |
6037 |
2740 |
2160 |
16916 |
|
GZM1535 |
Φ1500/Φ1200 |
3000/500 |
30.46 |
YR280M-8 |
75 |
725 |
5.08 |
8.74 |
6637 |
2740 |
2160 |
18462 |
|
GZM1545 |
Φ1500/Φ1200 |
4000/500 |
27 |
YR280M-8 |
110 |
735 |
6.58 |
14 |
7637 |
2740 |
2160 |
27600 |
|
GZM1836 |
Φ1830/Φ1500 |
3000/600 |
25.2 |
YR315m1-8 |
180 |
735 |
8.01 |
13.7 |
8560 |
3812 |
3134 |
30254 |
|
GZM1845 |
Φ1830/Φ1500 |
4000/500 |
25.2 |
YR315m2-6i |
155 |
735 |
10.02 |
18 |
6875 |
3510 |
2450 |
32000 |
|
GZM1856 |
Φ1830/Φ1500 |
5000/600 |
25.2 |
YR355m1-6s |
200 |
735 |
12.5 |
20 |
10385 |
3910 |
3334 |
40785 |
|
GZM1860 |
Φ1830/Φ1500 |
5400/600 |
25.2 |
YR355m1-8 |
220 |
735 |
12.94 |
21.5 |
10800 |
3910 |
3334 |
41385 |
|
GZM2131 |
Φ2100/Φ1670 |
2500/600 |
24.1 |
YR355m1-6s |
220 |
725 |
8.6 |
14.8 |
7663 |
3775 |
3003 |
36500 |
|
GZM2136 |
Φ2100/Φ1670 |
3000/600 |
24.1 |
YR355m1-8 |
220 |
735 |
10.1 |
17.4 |
8163 |
3775 |
3003 |
41000 |
|
GZM2140 |
Φ2100/Φ1670 |
3400/600 |
23.8 |
YR355m1-6 |
220 |
735 |
11.2 |
21 |
8900 |
3920 |
3394 |
43423 |
|
GZM2145 |
Φ2100/Φ1670 |
3900/600 |
23.8 |
YR355m2-6 |
245 |
735 |
12.62 |
22 |
9400 |
3920 |
3394 |
46009 |
|
GZM2156 |
Φ2100/Φ1670 |
5000/600 |
23.8 |
YR355m1-6 |
280 |
735 |
15.71 |
24.5 |
10454 |
3920 |
3394 |
55394 |
|
GZM2430 |
Φ2400/Φ2100 |
2500/500 |
21 |
YR355m4-8 |
250 |
735 |
10.9 |
22.5 |
9023 |
4836 |
3383 |
54000 |
|
GZM2445 |
Φ2400/Φ2100 |
4000/500 |
21 |
YR400S1-6 |
320 |
735 |
16.3 |
26 |
- |
- |
- |
- |
|
GZM2727 |
Φ2700/Φ2287.5 |
2150/550 |
21.62 |
YR400S2-8 |
245 |
735 |
12.9 |
22.9 |
7043 |
4897 |
4385 |
55809 |
|
GZM2733 |
Φ2700/Φ2287.5 |
2750/550 |
21.62 |
YR400S2-8 |
320 |
735 |
15.9 |
28 |
8443 |
4897 |
4385 |
62351 |
|
GZM2742 |
Φ2700/Φ2287.5 |
3650/550 |
21.76 |
YR400L1-8 |
245 |
740 |
20.5 |
36.5 |
9528 |
5152 |
4385 |
71221 |
|
GZM3245 |
Φ3200/Φ2700 |
4000/500 |
- |
Y5804-8 |
800 |
- |
28.93 |
- |
- |
- |
- |
- |
注：可根據客戶的不同要求設計制作各種規格型號的圓錐形球磨機
|
